Hema HM-MNT AHD Quad Display Touchscreen Reversing Monitor

Hema HM-MNT AHD Quad Display Touchscreen Reversing Monitor

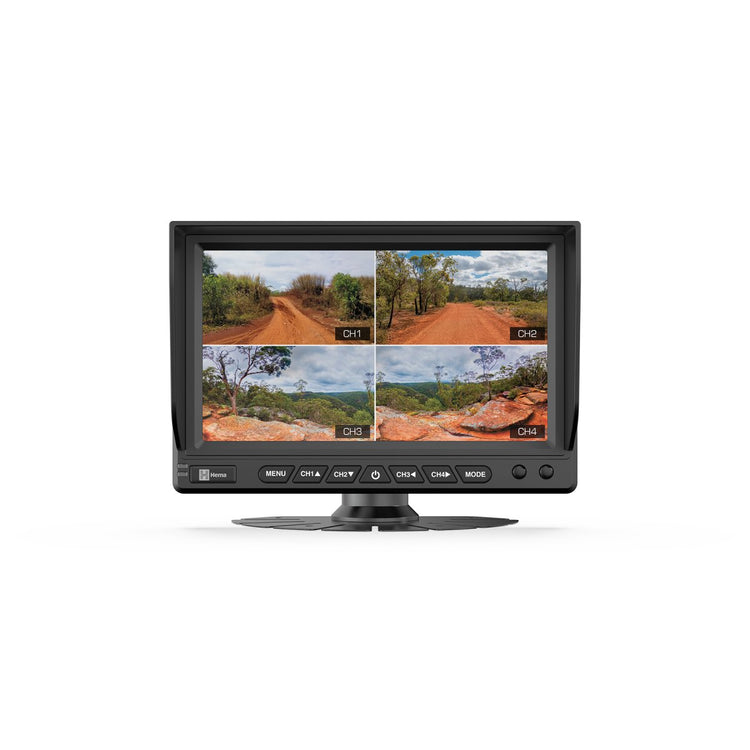

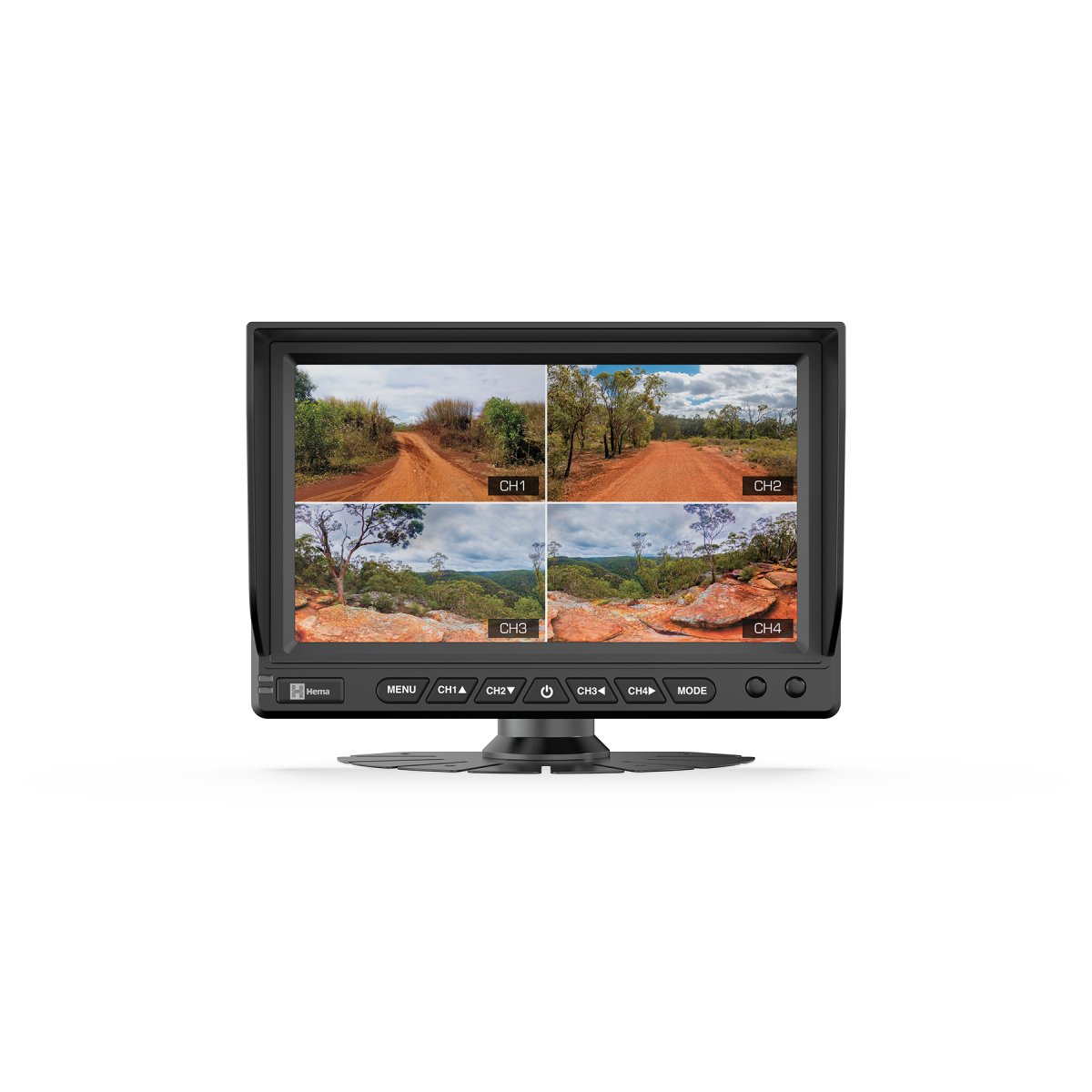

Experience unmatched safety and convenience with the Hema HM-MNT AHD Quad Display Touchscreen Reversing Monitor. Designed to seamlessly integrate with Hema HM-CAM15 and HM-CAM202 rear cameras, this 7” touchscreen monitor allows connection to up to four cameras, providing a 360° coverage for your vehicle. Compatible with CBVS and AHD camera technologies, it ensures versatility and high-resolution clarity. Dual mounting options cater to various dashboard preferences, while the included remote control adds convenience. Packed with advanced features like quad display mode and image rotation control, the monitor guarantees optimal control and customisation. With a reliable 6-pin gold-plated connector and a detachable sun visor for bright conditions, this monitor is suitable for anyone with a caravan, campertrailer, fifth wheeler or truck, offering 12V/24V compatibility for a versatile and reliable driving experience.

Key Features

 - Versatile Connectivity - comprehensive 360° coverage around your vehicle, ensuring unparalleled awareness of your surroundings. Compatible with both CBVS and AHD camera technologies.
 - Crystal-Clear Display - a vibrant 1024 x 600 AHD Screen Resolution and 7” touchscreen display, delivers high-quality resolution with sharp images and fine details.

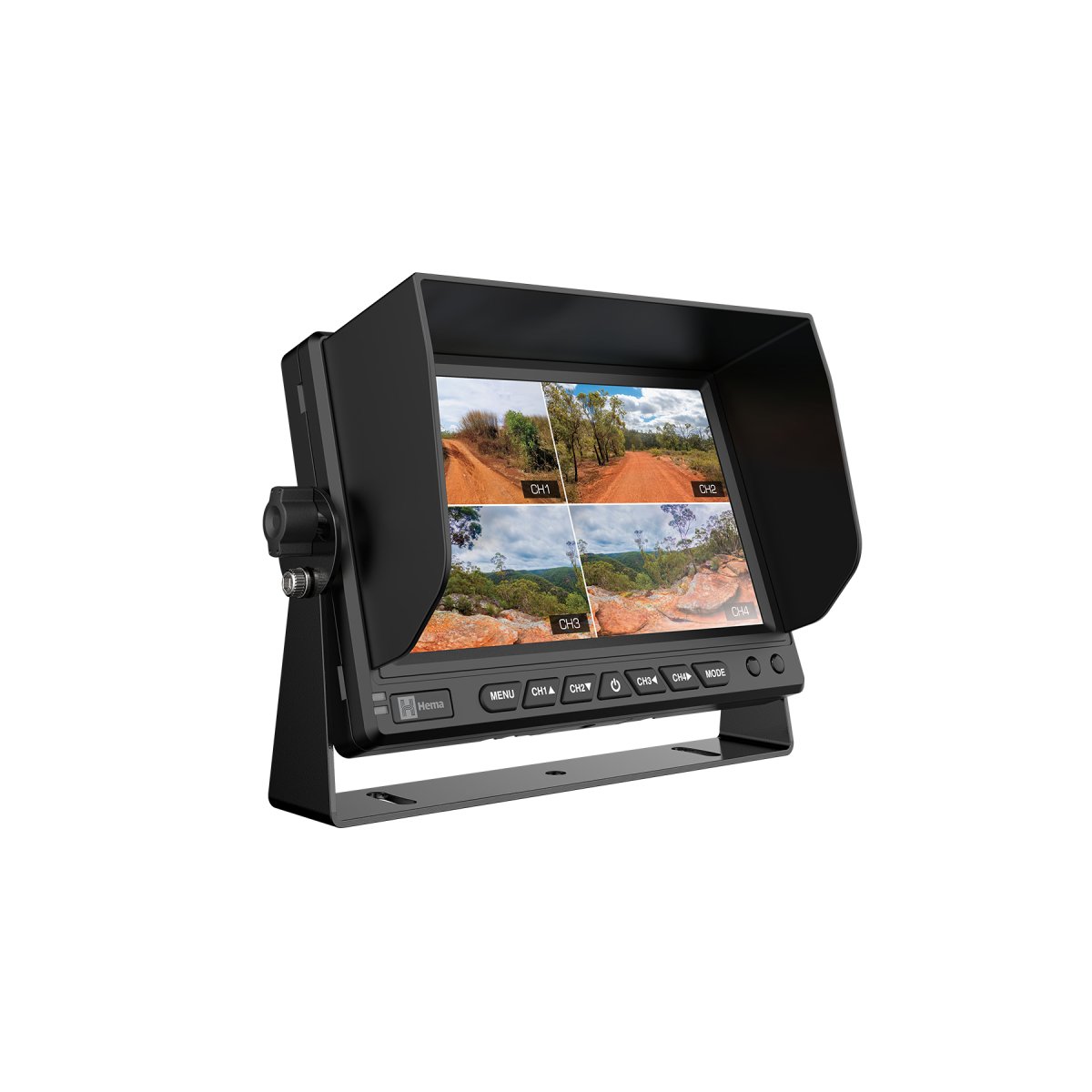

 - Convenient Dual Mounting Options - offers flexibility in installation, catering to various dashboard configurations. A U-she bracket mount and 3M dashboard mount are included.

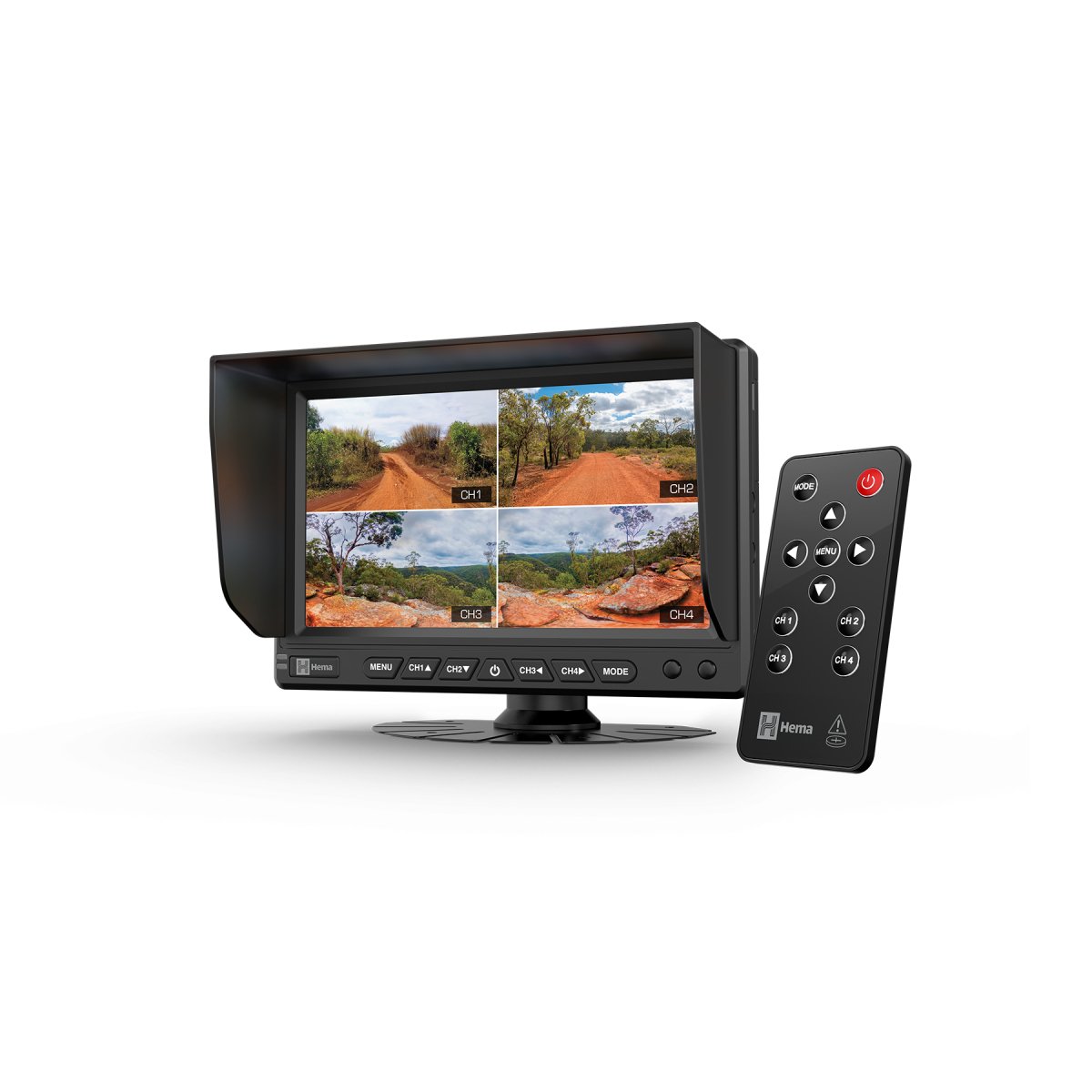

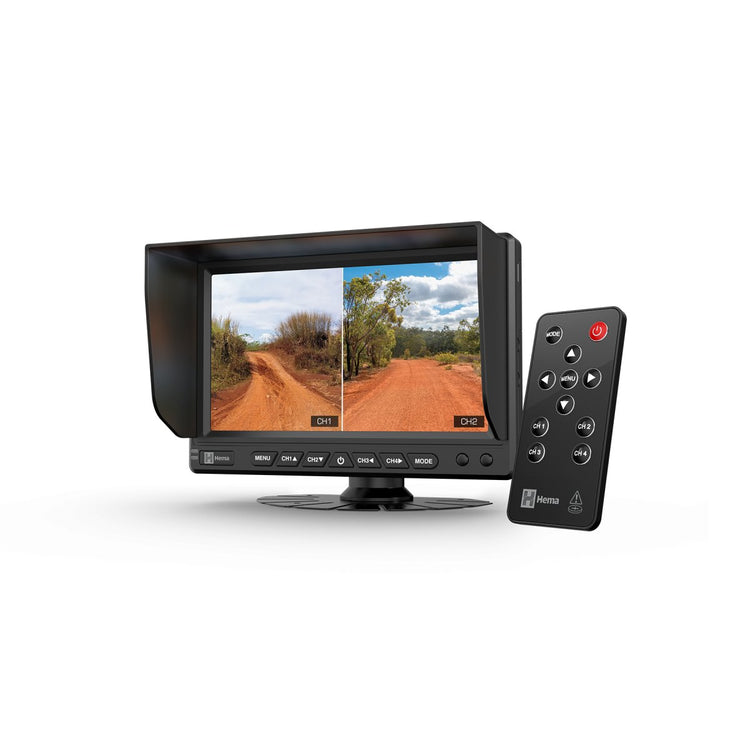

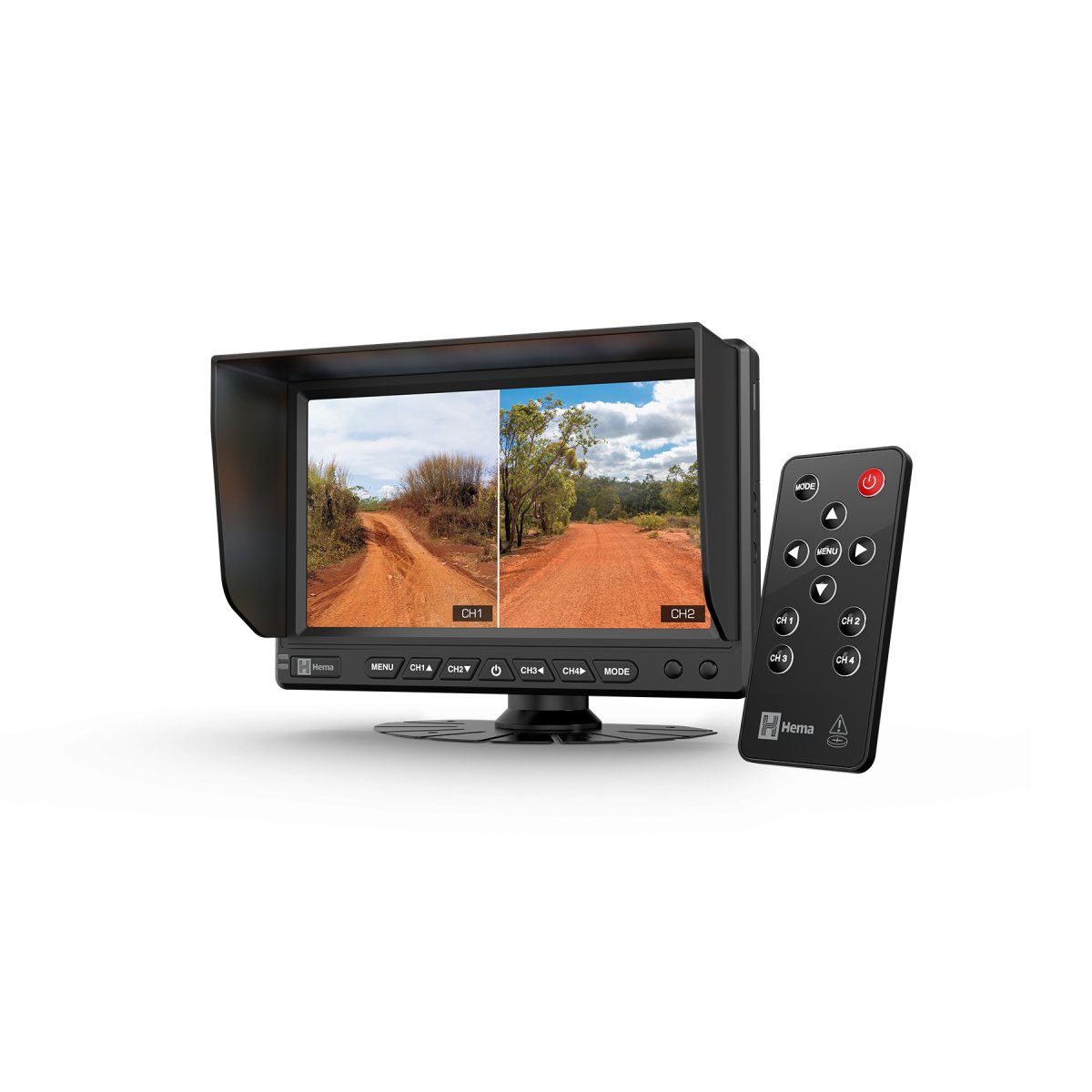

 - Remote Control for Added Convenience - enhance user convenience, a remote control is included with the monitor. This is particularly useful when the monitor is mounted on larger dashboards, allowing you to control and navigate the features with ease without reaching for the device.
 - Reliable connectivity - Equipped with a 6-pin gold-plated connector, the HM-MNT AHD Display Monitor ensures a secure and reliable connection with your cameras.
 - Sun Visor for Bright Conditions - enhance visibility in bright sunlight with the detachable sun visor.
 - All around visibility - With four cameras installed, never miss a spot with all around vehicle coverage.




Key Specifications

Compatibility:	Hema HM-CAM15 and HM-CAM202 rear cameras
LCD Size:	7" Analogue High Definition (AHD) IPS Touchscreen
Brightness:	600 cd/m2
Touchscreen:	Yes
Backlight:	LED
Screen Resolution:	600 H x 1024 W
Video System:	PAL/NTSC auto
Camera Compatibility:	AHD (720P, 960P, 1080P) / CVBS compatible
Viewing Angle:	Left/Right/Up/Down: 90°
Quad Split:	Built-in quad interface
View Mode:	Selectable single / dual / quad view
Trigger Priority:	CH 1 > CH 2 > CH 3 > CH4
Trigger Specification:	12V-32V DC (adjustable delay time 0-20 seconds)
Input Voltage:	12V-32V DC
Input Current:	700mA at 12V DC
Working Temperature:	-10°C to 65°C
Menu Language:	English
Mirror Image:	Mirror image and rotation available
Camera Inputs:	4
Sun Visor:	Detachable
Remote Control:	Included

Package includes:

• Hema HM-MNT AHD Quad Display Touchscreen Reversing Monitor
• Remote Control
• U-shape Mounting Bracket
• U-shape Bracket Mounting Bolts x 4
• Detachable Sun Visor
• 3M Adhesive Dashboard Mount
• Wire Harness
• User Manual



Suits: Hema HM-CAM15 and HM-CAM202 rear cameras



Note: Initial install of reversing camera needs to be wired by a qualified auto electrician. Compatible Reversing Camera's are sold separately.
